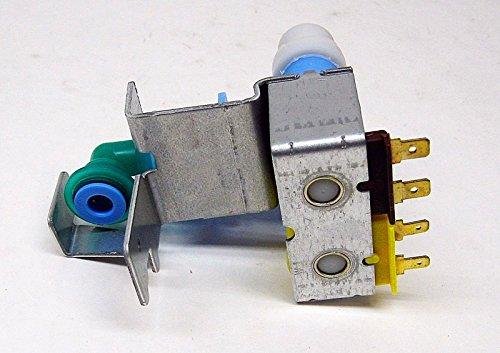

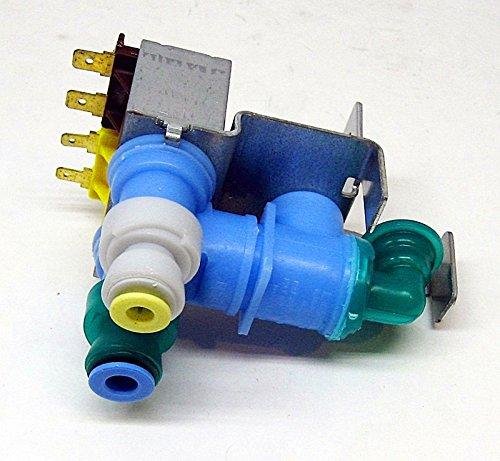

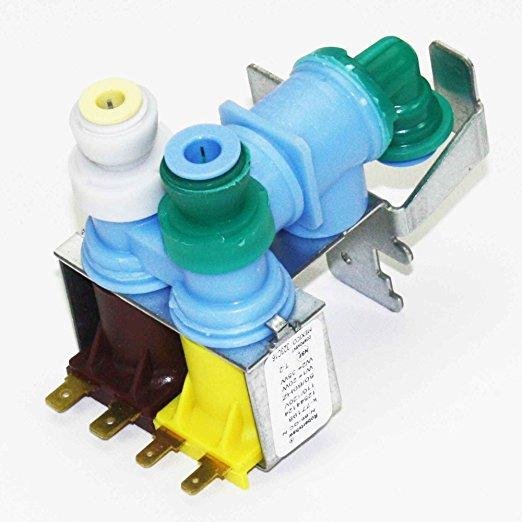

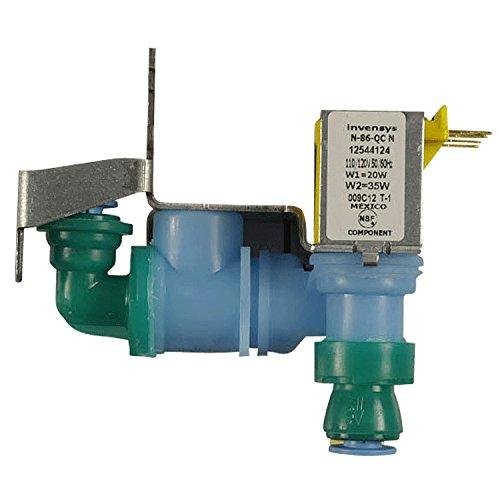

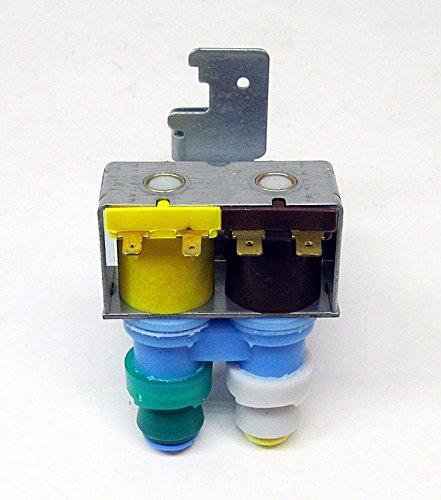

Kenmore KitchenAid Refrigerator Water Valve 12544124 WP12544124, New manufacturer Robertshaw perfect fit for old and new models, the part has 10 to 20 different part numbers.
Technical Specifications PS11738514:
All connections are quick disconnect
5/16 inch Inlet.
1/4 and 5/16inch outlet.
Yellow Coil is rated 20 Watts and has 3/16inch Terminals (2).
Brown Coil is Rated 35 Watts and has 1/4inch Terminals (2).
Both Coils are Rated 120 Volts -110 to 120 volts
Compatible Brands
Whirlpool, Kenmore Sears, Invensys, Robertshaw Valve, Admiral Amana, Crosley Jenn Air Kenmore Kitchen Aid Maytag LG Kenmore Samsung GE Frigidaire and more
